2Tons 4M Vertical Freight Elevator Platform Fixed Hydraulic Cargo Lift
Product Specifications
| Product name | Fixed Hydraulic Cargo Lift |

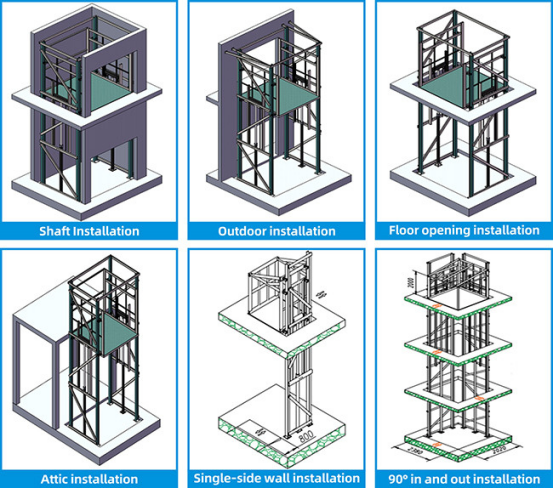

| Installation | in The Pit/on The Ground |
| Platform Size | 2000*1900mm |
| Emergency Stop | Emergency Stop at Each Floor Level |
| Driven Type | Hydraulic |
| Overlaod Warning | When Lift Overload, Lift Stop Work and Warning |
| Model | DSL 2T-4M |
What is the Hydraulic Guide Rail Lift?
The essential function of a freight lift is to raise and lower cargo between floors. It is adaptable for use in factories that transport raw or finished goods, warehouses engaged in storage and logistics, malls that relocate merchandise and displays, and hotels managing food service and laundry distribution.
Key Benefits
- Durable Hydraulic Unit: Ensures precise and reliable vertical lifting in demanding conditions.
- Engineered for Heaviness: Moves tons of material with ease and stability.
- Universal Suitability: Functions perfectly indoors or outdoors, regardless of environment.
- Integrated Safety System: Overload sensors, stop functions, and gate barriers provide security.
- Vertical-Smart Design: Slim design optimizes upward lifting without wasting space.
Technical Specifications
Specifications, sizes and colors can be customized according to customer requirements.
| Model | Rated load (kg) | Lifting stroke (mm) | Lowering height (mm) | Table size (mm) | Lifting time | Motor power (kw) |
| DSL1-3 | 1000 | 3000 | 100 | 2000×1800 | 6m/min | 3 |
| DSL2-4 | 2000 | 4000 | 150 | 2000×1800 | 6m/min | 4 |
| DSL2-10 | 2000 | 10000 | 200 | 3000×3500 | 6m/min | 4 |
| DSL3-5 | 3000 | 5000 | 150 | 3000×1800 | 6m/min | 5.5 |
| DSL3-8 | 3000 | 8000 | 150 | 2000×1700 | 6m/min | 5.5 |
| DSL4-5 | 4000 | 5000 | 250 | 3000×4000 | 6m/min | 7.5 |
| DSL4-10 | 4000 | 10000 | 150 | 5000×3000 | 6m/min | 7.5 |
| DSL5-6 | 5000 | 6000 | 400 | 5800×3000 | 6m/min | 11 |

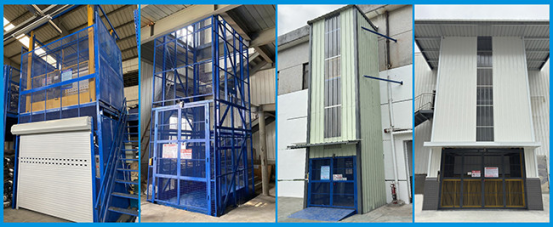

Product Gallery
About Our Company
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.
Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.
We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
